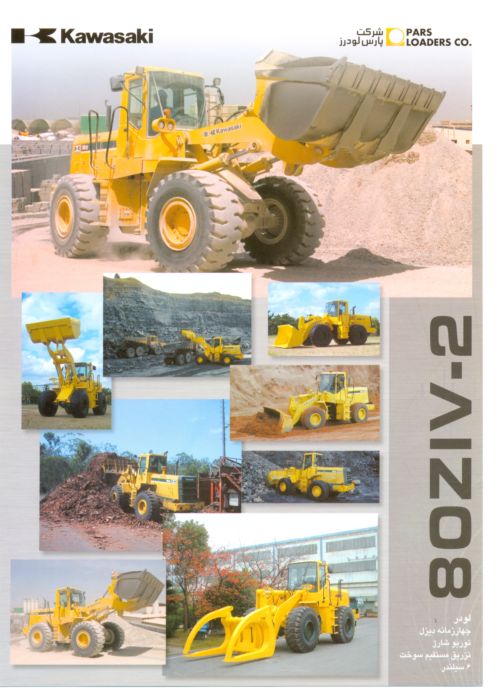

Loader 80ziv-2
Technical Specifications
|
Engine Specifications |
Model |
NISSAN NE6T |
|
Type |
4 cycle diesel with turbocharged and direct fuel injections |
|
Cylinder |
6 |
|
Engine rated power |
185 Hp /138 kw |
|
Capacity(lit) |
7.412 |
|
Specifications, Weight,
Dimensions,
Working Speed |
Operating weight (kg) |
15240 |
|
Bucket capacity, SAE |
2.6-30 |
|
Tire size |
23.5-25,16PR,L3 |
|
Overall height (mm) |
3375 |
|
Overall length with bucket (mm) |
7900 |
|
Overall width without bucket (mm) |
2635 |
|
Max loading height |
5305 |
|
Max dumping height (mm) |
2670 |
|
Max break tilt angle(degree) |
40 |
|
Bucket raise time (second) |
6.2 |
|
Bucket lower time (second) |
3.4 |
|
Bucket dumping time (second) |
1.4 |
|
Travel Speed
(km/h) |
|
Back |
Front |
|
Gear 1st |
6.7 |
6.6 |
|
Gear 2nd |
11.3 |
11.1 |
|
Gear 3rd |
20.1 |
20 |
|
Gear 4th |
34 |
33.9 |

|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
