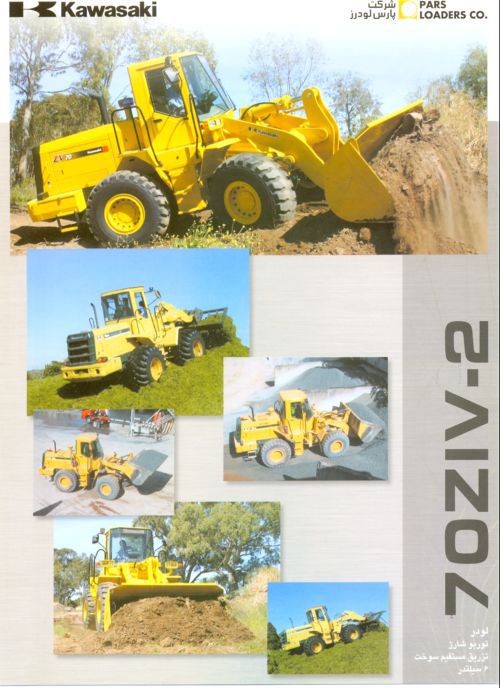

Loader 70ziv-2
Technical Specifications
|
Engine Specifications |
Model |
ISUZU A-6BG1T |
|
Type |
Direct injection, with turbocharged |
|
Cylinder |
6 |
|
Engine rated power |
164Hp /122kw |
|
Capacity (lit) |
6.494 |
|
Specifications,
Weight , Dimensions,
Working Speed |
Operating weight (kg) |
12830 |
|
Bucket capacity, SAE |
2.2-2.5 |
|
Tire size |
20.5-25-12,L2 |
|
Overall height(mm) |
3335 |
|
Overall length with bucket (mm) |
7515 |
|
Overall width without bucket (mm) |
2585 |
|
Max loading height (mm) |
5130 |
|
Max dumping height(mm) |
2615 |
|
Max break tilt angle(degree) |
40 |
|
Bucket raise time (second) |
6.2 |
|
Bucket lower time (second) |
3.1 |
|
Bucket dumping time (second) |
1.2 |
|
Travel Speed (km/h) |
|
Back |
Front |
|
Gear 1st |
7.5 |
7.5 |
|
Gear 2nd |
12.5 |
12.5 |
|
Gear 3rd |
20.5 |
20.5 |
|
Gear 4th |
37 |
37 |
